Openstack server list가 출력되는 과정 Tracing 하기

꼭 source openrc admin 을 해준 뒤, openstack을 실행시켜야 실행이 된다.

$sudo su- stack

$pwd
/opt/stack

stack@devstack-master:~$ cd devstack/

stack@devstack-master:~/devstack$ source openrc admin
WARNING: setting legacy OS_TENANT_NAME to support cli tools.

stack@devstack-ussuri:~/devstack$ openstack server list
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+
| ID                                   | Name | Status | Networks                                                            | Image | Flavor  |
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+
| baad8346-1541-4f12-a7f3-a41681398679 | test | ACTIVE | private=fd82:98dc:7575:0:f816:3eff:fec7:61d8, 10.0.0.22, 172.24.4.3 |       | m1.nano |
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+

VSCode Remote - SSH 를 사용하기 전에는 아래와 같이 Tracing 하였습니다.

stack@devstack-master:~/devstack$ whereis openstack
openstack: /etc/openstack /usr/local/bin/openstack
stack@devstack-ussuri:~/devstack$ cat /usr/local/bin/openstack
#!/usr/bin/python3.6
# -*- coding: utf-8 -*-
import re
import sys
from openstackclient.shell import main
if __name__ == '__main__':
   sys.argv[0] = re.sub(r'(-script\.pyw|\.exe)?$', '', sys.argv[0])
   sys.exit(main())

stack@devstack-ussuri:~/devstack$ python3
>>> import openstackclient
>>> openstackclient
<module 'openstackclient' from '/usr/local/lib/python3.6/dist-packages/openstackclient/__init__.py'>
stack@devstack-ussuri:~/devstack$ cat /usr/local/lib/python3.6/dist-packages/openstackclient/shell.py

1.whereis 로 Python file을 찾고 2.cat 으로 file 내용을 보고 3.import 한 module의 경로를 직접 찾았음 눈물없이 볼 수 없는 광경

이제는 VSCode를 사용하여 Tracing 하도록 합니다. Tracing을 위해 자주 사용한 단축키는 아래와 같습니다.

  • F12 : 함수가 선언된 곳으로 이동

  • Ctrl + E (or Ctrl+P) : Python File 명으로 검색

  • Ctrl + Shift + F : 전체 디렉토리에서 검색

  • Alt + ← : 이전 결과로 돌아가기

  • Alt + → : 다음 결과로 다시가기

  • F9 : Break Point

  • F5 : Debug Mode

  • F11 : Step into

  • F10 : Step

1.출발 : openstack 명령어

stack@devstack-ussuri:~/devstack$ openstack server list
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+
| ID                                   | Name | Status | Networks                                                            | Image | Flavor  |
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+
| baad8346-1541-4f12-a7f3-a41681398679 | test | ACTIVE | private=fd82:98dc:7575:0:f816:3eff:fec7:61d8, 10.0.0.22, 172.24.4.3 |       | m1.nano |
+--------------------------------------+------+--------+---------------------------------------------------------------------+-------+---------+

openstack 이라는 명령어와 Argument는 어떻게 넘어가서 출력되는지 찾으러 떠납니다.

stack@devstack-master:~/devstack$ whereis openstack
openstack: /etc/openstack /usr/local/bin/openstack
../_images/1_Search_openstack.png

Ctrl + Shift + F 를 사용하여 openstack 명령어가 실행된 파일을 클릭합니다.

/usr/local/bin/openstack

#!/usr/bin/python3.6
# -*- coding: utf-8 -*-
import re
import sys
from openstackclient.shell import main
if __name__ == '__main__':
   sys.argv[0] = re.sub(r'(-script\.pyw|\.exe)?$', '', sys.argv[0])
   sys.exit(main())
  • line 1 : argument를 받습니다. 출력과 무관할 것이라 예상됩니다.

  • line 2 : exit(main())으로 어딘가의 main으로 빠집니다. main() 위에 커서를 두고 F12를 클릭합니다

/usr/local/lib/python3.6/dist-packages/openstackclient/shell.py

def main(argv=None):
   if argv is None:
      argv = sys.argv[1:]
      if six.PY2:
         # Emulate Py3, decode argv into Unicode based on locale so that
         # commands always see arguments as text instead of binary data
         encoding = locale.getpreferredencoding()
         if encoding:
            argv = map(lambda arg: arg.decode(encoding), argv)
   return OpenStackShell().run(argv)
  • return 값으로 무엇인가를 넘겨주는 것을 볼 수 있습니다. 이 구문으로부터 출력이 나올것이라 예상하고 run이라는 function 위에서 F12를 눌러줍니다.

/usr/local/lib/python3.6/dist-packages/osc_lib/shell.py

class OpenStackShell(app.App):
   def run(self, argv):
      ret_val = 1
      self.command_options = argv
      try:
         ret_val = super(OpenStackShell, self).run(argv)
            return ret_val
      except Exception as e:
         if not logging.getLogger('').handlers:
            logging.basicConfig()
         if self.dump_stack_trace:
            self.log.error(traceback.format_exc())
         else:
            self.log.error('Exception raised: ' + str(e))
         return ret_val
      finally:
         self.log.info("END return value: %s", ret_val)
  • run 이라는 function은 try~except 구문을 사용하고 있습니다.

  • 이 구문을 자세히 보면 return ret_val을 넘겨주는 것을 알 수 있습니다.

  • 따라서, ret_val에 전달되는 값인 super(OpenStackShell, self).run(argv)의 run 함수에 커서를 두고 F12를 누릅니다.

/usr/local/lib/python3.6/dist-packages/cliff/app.py

class App(object):
   def run(self, argv):
   """
   Equivalent to the main program for the application.
   :param argv: input arguments and options
   :paramtype argv: list of str
   """
      try:
         self.options, remainder = self.parser.parse_known_args(argv)
         self.configure_logging()
         self.interactive_mode = not remainder
         if self.deferred_help and self.options.deferred_help and remainder:
            # When help is requested and `remainder` has any values disable
            # `deferred_help` and instead allow the help subcommand to
            # handle the request during run_subcommand(). This turns
            # "app foo bar --help" into "app help foo bar". However, when
            # `remainder` is empty use print_help_if_requested() to allow
            # for an early exit.
            # Disabling `deferred_help` here also ensures that
            # print_help_if_requested will not fire if called by a subclass
            # during its initialize_app().
            self.options.deferred_help = False
            remainder.insert(0, "help")
         self.initialize_app(remainder)
         self.print_help_if_requested()
      except Exception as err:
         if hasattr(self, 'options'):
            debug = self.options.debug
         else:
            debug = True
         if debug:
            self.LOG.exception(err)
            raise
         else:
            self.LOG.error(err)
         return 1
      result = 1
      if self.interactive_mode:
         result = self.interact()
      else:
         result = self.run_subcommand(remainder)
      return result
  • try ~ except 구문을 사용하고 있습니다. 눈여겨 봐야할 것은 어떤 값이 반환되는지보는 return 값 입니다.

  • return result를 사용하고 있으며, result에는 if ~ else 구문으로 각기 다른 값이 들어가고 있습니다.

  • remainder is empty use print_help_if_requested() to allow

  • 이 문장에서, arguments가 empty일 때 remainder가 0이 되고 -> interactive_mode=True가 됩니다.

  • 따라서, run_subcommand()로 진입합니다.

/usr/local/lib/python3.6/dist-packages/cliff/app.py.

class App(object):
   def run_subcommand(self, argv):
      try:
         subcommand = self.command_manager.find_command(argv)
      except ValueError as err:
         # If there was no exact match, try to find a fuzzy match
         the_cmd = argv[0]
         fuzzy_matches = self.get_fuzzy_matches(the_cmd)
         if fuzzy_matches:
            article = 'a'
            if self.NAME[0] in 'aeiou':
               article = 'an'
            self.stdout.write('%s: \'%s\' is not %s %s command. ''See \'%s --help\'.\n'% (self.NAME, ' '.join(argv), article,self.NAME, self.NAME))
            self.stdout.write('Did you mean one of these?\n')
            for match in fuzzy_matches:
               self.stdout.write('  %s\n' % match)
         else:
               if self.options.debug:
               raise
               else:
                  self.LOG.error(err)
            return 2
      cmd_factory, cmd_name, sub_argv = subcommand
      kwargs = {}
      if 'cmd_name' in utils.getargspec(cmd_factory.__init__).args:
         kwargs['cmd_name'] = cmd_name
      cmd = cmd_factory(self, self.options, **kwargs)
      result = 1
      try:
         self.prepare_to_run_command(cmd)
         full_name = (cmd_name if self.interactive_mode else ' '.join([self.NAME, cmd_name]))
         cmd_parser = cmd.get_parser(full_name)
         parsed_args = cmd_parser.parse_args(sub_argv)
         result = cmd.run(parsed_args)
      except Exception as err:
         if self.options.debug:
            self.LOG.exception(err)
         else:
            self.LOG.error(err)
         try:
            self.clean_up(cmd, result, err)
         except Exception as err2:
            if self.options.debug:
               self.LOG.exception(err2)
            else:
               self.LOG.error('Could not clean up: %s', err2)
         if self.options.debug:
            # 'raise' here gets caught and does not exit like we want
            return result
      else:
         try:
            self.clean_up(cmd, result, None)
         except Exception as err3:
            if self.options.debug:
               self.LOG.exception(err3)
            else:
               self.LOG.error('Could not clean up: %s', err3)
      return result

코드가 기니까 중요하지 않은 부분은 설명과 함께 주석으로 처리해서 핵심만 바라봅시다.

try:
   subcommand = self.command_manager.find_command(argv)
   # Exception 발생에 대한 처리입니다. 넘기도록 합니다.
   #          except ValueError as err:
   #              return 2
   cmd_factory, cmd_name, sub_argv = subcommand
   kwargs = {}
   if 'cmd_name' in utils.getargspec(cmd_factory.__init__).args: ①
      kwargs['cmd_name'] = cmd_name
   cmd = cmd_factory(self, self.options, **kwargs)
   result = 1
   try:
      self.prepare_to_run_command(cmd)
      full_name = (cmd_name
         if self.interactive_mode
         else ' '.join([self.NAME, cmd_name])
      )
      cmd_parser = cmd.get_parser(full_name)
      parsed_args = cmd_parser.parse_args(sub_argv)
      result = cmd.run(parsed_args)
      # Exception 발생에 대한 처리입니다. 넘기도록 합니다.
      #          except Exception as err:
      #                  return result
   else: ②
      try:
         self.clean_up(cmd, result, None)
         # Exception 발생에 대한 처리입니다. 넘기도록 합니다.
         except Exception as err3:
   return result
  • 가장 먼저 맨 마지막의 return result를 바라봅니다. 함수를 추적하는데 있어서 제일 먼저 바라봐야 할 것은 함수의 Entry와 Exit 입니다.

  • result의 값이 유의미하게 쓰여지는 곳은 result = cmd.run(parsed_args) 입니다.

  • 느낌상 cmd.run이 print 해줄 것 같습니다. 일단 따라갑니다.

/usr/local/lib/python3.6/dist-packages/osc_lib/command/command.py

class Command(command.Command, metaclass=CommandMeta):
   def run(self, parsed_args):
      self.log.debug('run(%s)', parsed_args)
      return super(Command, self).run(parsed_args)

여기서부터는 답을 찾지 못했는데, 아시는 분은 알려주시면 감사할 것 같습니다.

20.08.30

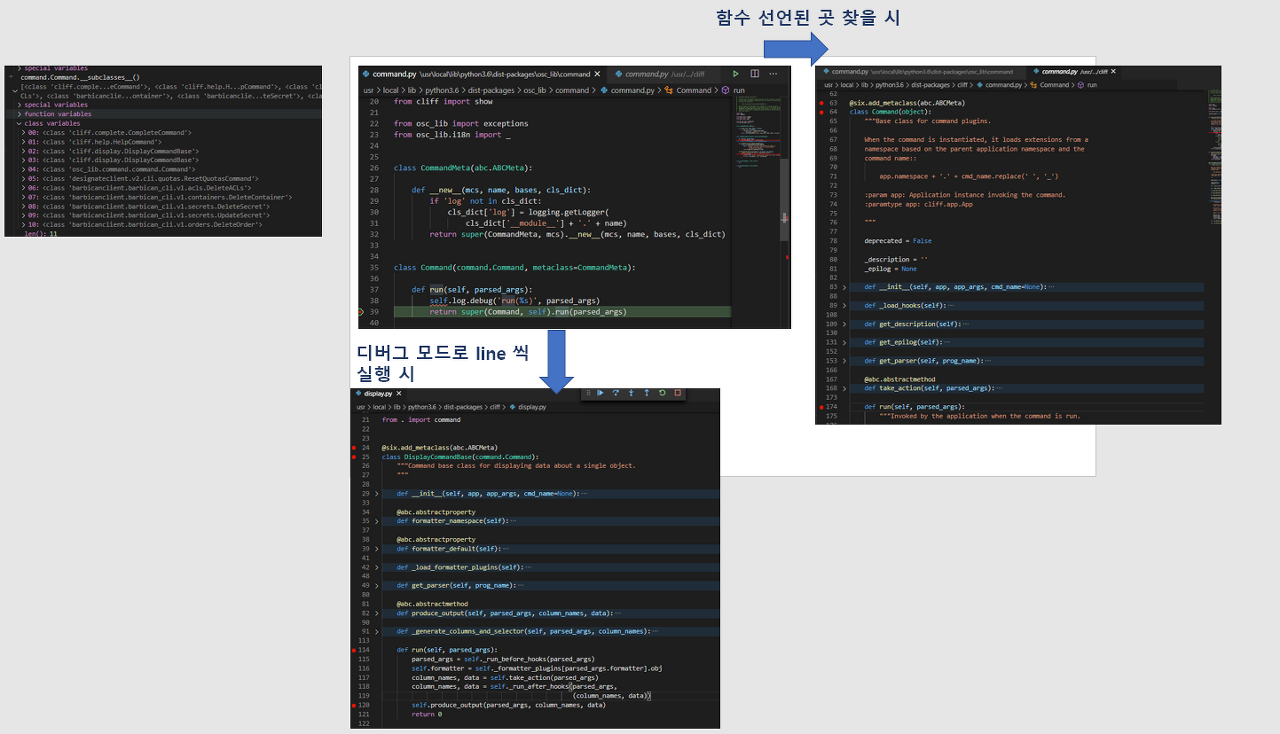

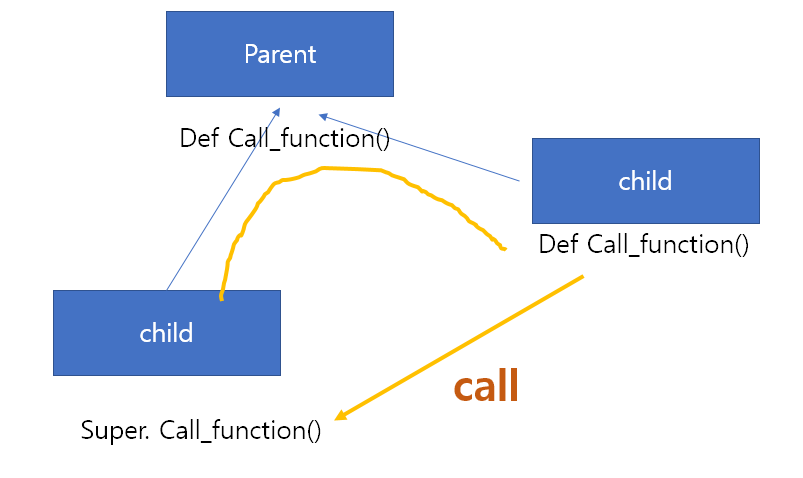

../_images/2_idontknow.png ../_images/3_idontknow.png

F12를 눌르면 아래의 경로로 갑니다.

/usr/local/lib/python3.6/dist-packages/osc_lib/command/command.py.

class Command(command.Command, metaclass=CommandMeta):
   def run(self, parsed_args):
      """Invoked by the application when the command is run.
      Developers implementing commands should override
      :meth:`take_action`.
      Developers creating new command base classes (such as
      :class:`Lister` and :class:`ShowOne`) should override this
      method to wrap :meth:`take_action`.
      Return the value returned by :meth:`take_action` or 0.
      """
      parsed_args = self._run_before_hooks(parsed_args)
      return_code = self.take_action(parsed_args) or 0
      return_code = self._run_after_hooks(parsed_args, return_code)
      return return_code
  • 그러나 실제로 디버깅 진입시에는 아래와 같은 경로로 진입합니다.

/usr/local/lib/python3.6/dist-packages/cliff/display.py

@six.add_metaclass(abc.ABCMeta)
class DisplayCommandBase(command.Command):
def run(self, parsed_args):
   parsed_args = self._run_before_hooks(parsed_args)
   self.formatter = self._formatter_plugins[parsed_args.formatter].obj
   column_names, data = self.take_action(parsed_args)
   column_names, data = self._run_after_hooks(parsed_args,(column_names, data))
   self.produce_output(parsed_args, column_names, data)
   return 0

참조한 Site * https://stackoverflow.com/questions/4799401/pythons-super-abstract-base-classes-and-notimplementederror * https://docs.python.org/ko/3/library/abc.html * https://dojang.io/mod/page/view.php?id=2389 * https://www.geeksforgeeks.org/abstract-classes-in-python/ * https://alphahackerhan.tistory.com/34

[Python에서 자식 클래스 확인]
Foo.__subclasses__()
[<class '__main__.Bar'>, <class '__main__.Baz'>]
[Python에서 부모 클래스 확인]
cls.__bases__
(<class '__main__.A'>, <class '__main__.B'>)
[Python에서 Instance 확인]
simclass = Csimple()
isinstance(simclass,Csimple)
# simclass가 Csimple 클래스인지 확인. 결과는 True

마저 진행해보면

/usr/local/lib/python3.6/dist-packages/cliff/display.py.

@six.add_metaclass(abc.ABCMeta)
class DisplayCommandBase(command.Command):
   def run(self, parsed_args):
   parsed_args = self._run_before_hooks(parsed_args)
   self.formatter = self._formatter_plugins[parsed_args.formatter].obj
   column_names, data = self.take_action(parsed_args)
   column_names, data = self._run_after_hooks(parsed_args,(column_names, data))
   self.produce_output(parsed_args, column_names, data)
   return 0
  • self.produce_output() 함수를 통해 출력이 됨을 확인할 수 있습니다.

+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| ID                                   | Name    | Status | Networks                                                             | Image | Flavor  |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| 6f91eb30-8687-49d7-859f-7284887d57f8 | 1st_Ins | ACTIVE | private=10.0.0.53, fd30:b09a:8b83:0:f816:3eff:fe79:1bec, 172.24.4.59 |       | m1.nano |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
  • 함수명에 output 이 있는걸로 보아 출력 된다는 것을 예상 할 수 있지만, 표준출력함수(stdout)이 나올 때 까지 좀 더 Tracing 해보도록 합니다.

“/usr/local/lib/python3.6/dist-packages/cliff/display.py”

@six.add_metaclass(abc.ABCMeta)
class DisplayCommandBase(command.Command):
   def run(self, parsed_args):
      self.produce_output(parsed_args, column_names, data)
      return 0
@abc.abstractmethod
   def produce_output(self, parsed_args, column_names, data):
      """Use the formatter to generate the output.
      :param parsed_args: argparse.Namespace instance with argument values
      :param column_names: sequence of strings containing names of output columns
      :param data: iterable with values matching the column names
      """
  • DisplayCommandBase Class의 produce_output() function 에는 내용이 없습니다.

  • F11을 누르면 상속받은 Class의 produce_output() function으로 갑니다.

DisplayCommandBase.__subclasses__()

[<class 'cliff.lister.Lister'>, <class 'cliff.lister.Lister'>, <class 'cliff.show.ShowOne'>]

class variables
0:<class 'cliff.lister.Lister'>
1:<class 'cliff.lister.Lister'>
2:<class 'cliff.show.ShowOne'>

/usr/local/lib/python3.6/dist-packages/cliff/lister.py

@six.add_metaclass(abc.ABCMeta)
class Lister(display.DisplayCommandBase):
   def produce_output(self, parsed_args, column_names, data):
      if parsed_args.sort_columns and self.need_sort_by_cliff:
         indexes = [column_names.index(c) for c in parsed_args.sort_columns if c in column_names]
         if indexes:
            data = sorted(data, key=operator.itemgetter(*indexes))
      (columns_to_include, selector) = self._generate_columns_and_selector(
         parsed_args, column_names)
      if selector:
         # Generator expression to only return the parts of a row
         # of data that the user has expressed interest in
         # seeing. We have to convert the compress() output to a
         # list so the table formatter can ask for its length.
         data = (list(self._compress_iterable(row, selector)) for row in data)
         self.formatter.emit_list(columns_to_include,data,self.app.stdout,parsed_args,)
      return 0
  • self.formatter.emit_list 이후 출력이 됩니다.

  • F11을 눌러 emit_list 함수를 따라갑니다.

  • F12를 눌러 선언을 확인했을 때는 이동하지 않았었습니다. ㅠㅠ.

+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| ID                                   | Name    | Status | Networks                                                             | Image | Flavor  |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| 6f91eb30-8687-49d7-859f-7284887d57f8 | 1st_Ins | ACTIVE | private=10.0.0.53, fd30:b09a:8b83:0:f816:3eff:fe79:1bec, 172.24.4.59 |       | m1.nano |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+

/usr/local/lib/python3.6/dist-packages/cliff/formatters/table.py

class TableFormatter(base.ListFormatter, base.SingleFormatter):
   def emit_list(self, column_names, data, stdout, parsed_args):
      x = prettytable.PrettyTable(column_names,print_empty=parsed_args.print_empty,)
      x.padding_width = 1
      # Add rows if data is provided
      if data:
         self.add_rows(x, column_names, data)
      # Choose a reasonable min_width to better handle many columns on a
      # narrow console. The table will overflow the console width in
      # preference to wrapping columns smaller than 8 characters.
      min_width = 8
      self._assign_max_widths(stdout, x, int(parsed_args.max_width), min_width,parsed_args.fit_width)
      formatted = x.get_string()
      stdout.write(formatted)
      stdout.write('\n')
      return
  • stdou.wrtie(formatted) 이후 출력이 나옵니다.

  • 이를 통해서 formatted 라는 곳에 문자열(string)이 들어가 있음을 알 수 있겠습니다.

+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| ID                                   | Name    | Status | Networks                                                             | Image | Flavor  |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
| 6f91eb30-8687-49d7-859f-7284887d57f8 | 1st_Ins | ACTIVE | private=10.0.0.53, fd30:b09a:8b83:0:f816:3eff:fe79:1bec, 172.24.4.59 |       | m1.nano |
+--------------------------------------+---------+--------+----------------------------------------------------------------------+-------+---------+
  • 이제 출력이 되는 것을 확인하였으니 변경을 시도해 봅니다.

3. [실습] Openstack server list Table 변경하여 출력하기

“/usr/local/lib/python3.6/dist-packages/cliff/formatters/table.py”

class TableFormatter(base.ListFormatter, base.SingleFormatter):
   def emit_list(self, column_names, data, stdout, parsed_args):
      x = prettytable.PrettyTable( column_names, print_empty=parsed_args.print_empty, )
      x.padding_width = 1
      # Add rows if data is provided if data: self.add_rows(x, column_names, data)
      # Choose a reasonable min_width to better handle many columns on a
      # narrow console. The table will overflow the console width in
      # preference to wrapping columns smaller than 8 characters.
      min_width = 8
      self._assign_max_widths( stdout, x, int(parsed_args.max_width), min_width, parsed_args.fit_width)
      formatted = x.get_string()
      stdout.write(formatted)
      stdout.write('\n')
      return
  • x=prettytable.PrettyTable() 에서 +—+ 가 들어가게 이쁘게 테이블을 생성해주는 것 같습니다.

  • 이 때 들어가는 column들은 column_names 라는 argument가 될 것 같네요. 한번 찍어봅시다.

  • self.add_rows 에서 Data를 추가해줄 것 같네요. F11을 눌러 들어가 봅니다

“”/usr/local/lib/python3.6/dist-packages/cliff/formatters/table.py””

class TableFormatter(base.ListFormatter, base.SingleFormatter):
   def add_rows(self, table, column_names, data):
      # Figure out the types of the columns in the
      # first row and set the alignment of the
      # output accordingly.
      data_iter = iter(data)
      try:
         first_row = next(data_iter)
      except StopIteration:
         pass
      else:
         for value, name in zip(first_row, column_names):
            alignment = self.ALIGNMENTS.get(type(value), 'l')
            table.align[name] = alignment
         # Now iterate over the data and add the rows.
         table.add_row(_format_row(first_row))
         for row in data_iter:
            table.add_row(_format_row(row))
  • fisrt_row 라는 곳에 저희가 원하는 데이터가 들어가 있습니다.

first_row
('6f91eb30-8687-49d7-8...84887d57f8', '1st_Ins', 'ACTIVE', 'private=10.0.0.53, f...72.24.4.59', '', 'm1.nano')
special variables
function variables
0:'6f91eb30-8687-49d7-859f-7284887d57f8'
1:'1st_Ins'
2:'ACTIVE'
3:'private=10.0.0.53, fd30:b09a:8b83:0:f816:3eff:fe79:1bec, 172.24.4.59'
4:''
5:'m1.nano'
len():6

그리고

type(first_row)
<class 'tuple'>

타입은 Tuple이군요 저는 여기서 fisrt_row와 column_names에 item을 추가해서 출력시켜 보겠습니다.

first_row += ('Test:)',)
first_row
('6f91eb30-8687-49d7-8...84887d57f8', '1st_Ins', 'ACTIVE', 'private=10.0.0.53, f...72.24.4.59', '', 'm1.nano', 'Test:)')

“”/usr/local/lib/python3.6/dist-packages/cliff/display.py””

column_names += ("TestL:)",)
column_names
('ID', 'Name', 'Status', 'Networks', 'Image', 'Flavor', 'TestL:)')
../_images/4_modified.png
  • 일단 출력 되었습니다 !

  • 이제 이런 주먹구구식 말고, 좀 더 general 하게 접근할 수 있는 방법을 찾아보겠습니다.

1.가장 먼저 추측해본 곳은 column_names에 정보가 담기는 곳입니다.

최종적으로 stdout.write 될 때, 사용 되는 것이 column_names 였기 때문입니다. 따라서 Display.py 파일부터 tracing Entry로 잡았습니다.

“/usr/local/lib/python3.6/dist-packages/cliff/display.py”.

@six.add_metaclass(abc.ABCMeta)
class DisplayCommandBase(command.Command):
   def run(self, parsed_args):
      parsed_args = self._run_before_hooks(parsed_args)
      self.formatter = self._formatter_plugins[parsed_args.formatter].obj
=>    column_names, data = self.take_action(parsed_args)
      column_names, data = self._run_after_hooks(parsed_args, (column_names, data))
      self.produce_output(parsed_args, column_names, data)
      return 0
  • => 표시된 Break point를 걸고 F11로 진입하였습니다.

/usr/local/lib/python3.6/dist-packages/openstackclient/compute/v2/server.py

class ListServer(command.Lister):
   def take_action(self, parsed_args):
      compute_client = self.app.client_manager.compute
      identity_client = self.app.client_manager.identity
      image_client = self.app.client_manager.image

      project_id = None
      # None 이어서 실행되지 않는 문장 제거

      ## 명령어 입력시 --long을 해야함. 아래 참고한 페이지 서술
      if parsed_args.long:
      else:
         if: parsed_args.no_name_lookup:
         else:
            columns = (
               'ID',
               'Name',
               'Status',
               'Networks',
               'Image Name',
               'Flavor Name',
            )
         column_headers = (
            'ID',
            'Name',
            'Status',
            'Networks',
            'Image',
            'Flavor',
         )
         mixed_case_fields = []
      marker_id = None
=>    data = compute_client.servers.list(search_opts=search_opts,marker=marker_id,limit=parsed_args.limit)
  • 중간에 data=compute_client.servers.list() 를 담는 곳이 있습니다.

  • 저희가 입력한 명령어는 server list 이기 때문에, 이부분이 실제로 list 자료를 get 하는 부분이 아닐까 의심합니다.

  • => 표시된 Break point를 걸고 F11로 진입하였습니다.

[Debug Console로 확인한 parsed_args 값들]

parsed_args
all_projects:False
changes_before:None
changes_since:None
columns:[]
deleted:False
fit_width:False
flavor:None
formatter:'table'
no_name_lookup:False
noindent:False
print_empty:False
project:None
project_domain:None
quote_mode:'nonnumeric'
reservation_id:None
sort_columns:[]
status:None
unlocked:False
user:None
user_domain:None

/usr/local/lib/python3.6/dist-packages/novaclient/v2/servers.py

class ServerManager(base.BootingManagerWithFind):
def list(self, detailed=True, search_opts=None, marker=None, limit=None,sort_keys=None, sort_dirs=None):
   """
   Get a list of servers.
   :param detailed: Whether to return detailed server info (optional).
   :param search_opts: Search options to filter out servers which don't
      match the search_opts (optional). The search opts format is a
      dictionary of key / value pairs that will be appended to the query
      string.  For a complete list of keys see:
      https://docs.openstack.org/api-ref/compute/#list-servers
   :param marker: Begin returning servers that appear later in the server list than that represented by this server id (optional).
   :param limit: Maximum number of servers to return (optional).
      Note the API server has a configurable default limit.
      If no limit is specified here or limit is larger than
      default, the default limit will be used.
      If limit == -1, all servers will be returned.
   :param sort_keys: List of sort keys
   :param sort_dirs: List of sort directions
   :rtype: list of :class:`Server`

   Examples:

   client.servers.list() - returns detailed list of servers

   client.servers.list(search_opts={'status': 'ERROR'}) -
   returns list of servers in error state.

   client.servers.list(limit=10) - returns only 10 servers

   """
   if search_opts is None:
      search_opts = {}
      ....
=>    servers = self._list("/servers%s%s" % (detail, query_string),"servers")
      result.extend(servers)
      result.append_request_ids(servers.request_ids)
   return result
  • 함수 내용이 길지만, 주석에 대놓고 “Get a list of server” 라고 써져 있습니다.

  • servers=self._list를 통해서 서버 명이 전달됩니다

result
[<Server: 1st_Ins>]

0:<Server: 1st_Ins>
special variables
function variables
HUMAN_ID:True
NAME_ATTR:'name'
OS-DCF:diskConfig:'AUTO'
OS-EXT-AZ:availability_zone:'nova'
OS-EXT-STS:power_state:1
OS-EXT-STS:task_state:None
OS-EXT-STS:vm_state:'active'
OS-SRV-USG:launched_at:'2020-08-06T13:21:45.000000'
OS-SRV-USG:terminated_at:None
accessIPv4:''
accessIPv6:''
addresses:{'private': [{...}, {...}, {...}]}
api_version:<APIVersion: 2.1>
config_drive:''
created:'2020-08-06T13:21:28Z'
flavor:{'id': '42', 'links': [{...}]}
hostId:'f0b0f1375254bb6ee4a83c7f4e2ad6331d94f497bb3a9b1848af817a'
human_id:'1st_ins'
id:'6f91eb30-8687-49d7-859f-7284887d57f8'
image:''
key_name:'keyy'
links:[{'href': 'http://192.168.1.10/...84887d57f8', 'rel': 'self'}, {'href': 'http://192.168.1.10/...84887d57f8', 'rel': 'bookmark'}]
manager:<novaclient.v2.servers.ServerManager object at 0x7f65b323eeb8>
metadata:{}
name:'1st_Ins'
networks:OrderedDict([('private', ['10.0.0.53', 'fd30:b09a:8b83:0:f81...:fe79:1bec', '172.24.4.59'])])
os-extended-volumes:volumes_attached:[{'id': '05e026ea-96ed-4499-9...ba1cb63897'}]
progress:0
request_ids:[]
security_groups:[{'name': 'default'}]
status:'ACTIVE'
tenant_id:'4e2abe72f99d484a82473b851a792f8a'
updated:'2020-08-06T13:21:46Z'
user_id:'b1f15ecfa456447c8d69ffaca15a2c69'
x_openstack_request_ids:[]
_add_details:<bound method Resource._add_details of <Server: 1st_Ins>>
_append_request_id:<bound method RequestIdMixin._append_request_id of <Server: 1st_Ins>>
_info:{'OS-DCF:diskConfig': 'AUTO', 'OS-EXT-AZ:availability_zone': 'nova', 'OS-EXT-STS:power_state': 1, 'OS-EXT-STS:task_state': None, 'OS-EXT-STS:vm_state': 'active', 'OS-SRV-USG:launched_at': '2020-08-06T13:21:45.000000', 'OS-SRV-USG:terminated_at': None, 'accessIPv4': '', 'accessIPv6': '', 'addresses': {'private': [...]}, 'config_drive': '', 'created': '2020-08-06T13:21:28Z', 'flavor': {'id': '42', 'links': [...]}, 'hostId': 'f0b0f1375254bb6ee4a8...1848af817a', ...}
_loaded:True
len():1
  • 쫙 긁혀서 나옵니다.

  • 그리고 _info를 보시면 위의 것이 한번 더 정리되어서 아래와 같습니다.

'hostId':'f0b0f1375254bb6ee4a83c7f4e2ad6331d94f497bb3a9b1848af817a'
'image':''
'flavor':{'id': '42', 'links': [{...}]}
'created':'2020-08-06T13:21:28Z'
'updated':'2020-08-06T13:21:46Z'
'addresses':{'private': [{...}, {...}, {...}]}
'accessIPv4':''
'accessIPv6':''
'links':[{'href': 'http://192.168.1.10/...84887d57f8', 'rel': 'self'}, {'href': 'http://192.168.1.10/...84887d57f8', 'rel': 'bookmark'}]
'OS-DCF:diskConfig':'AUTO'
'progress':0
'OS-EXT-AZ:availability_zone':'nova'
'config_drive':''

다시 돌아와서 이후 코드를 진행합니다.

“/usr/local/lib/python3.6/dist-packages/openstackclient/compute/v2/server.py”.

class ListServer(command.Lister):
   def take_action(self, parsed_args):
      data = compute_client.servers.list(search_opts=search_opts,marker=marker_id,limit=parsed_args.limit)
      #있는 list를 싹 다 긁어옴
      # 싹다 긁어온거랑, server 에서 가져온거랑 matching 시킴
      table =  (column_headers,
               (utils.get_item_properties(
                  s, columns,
                  mixed_case_fields=mixed_case_fields,
                  formatters={'OS-EXT-STS:power_state': _format_servers_list_power_state,
                     'Networks': _format_servers_list_networks,
                     'Metadata': utils.format_dict,
                  },
               ) for s in data))
      return table
table
0:('ID', 'Name', 'Status', 'Networks', 'Image', 'Flavor')
1:<generator object ListServer.take_action.<locals>.<genexpr> at 0x7f65b2e3c1a8>
len():2
  • 이 Table이 반환되면서 column_names와 Data가 반환되게 되고

  • 우리의 여정은 끝입니다.
